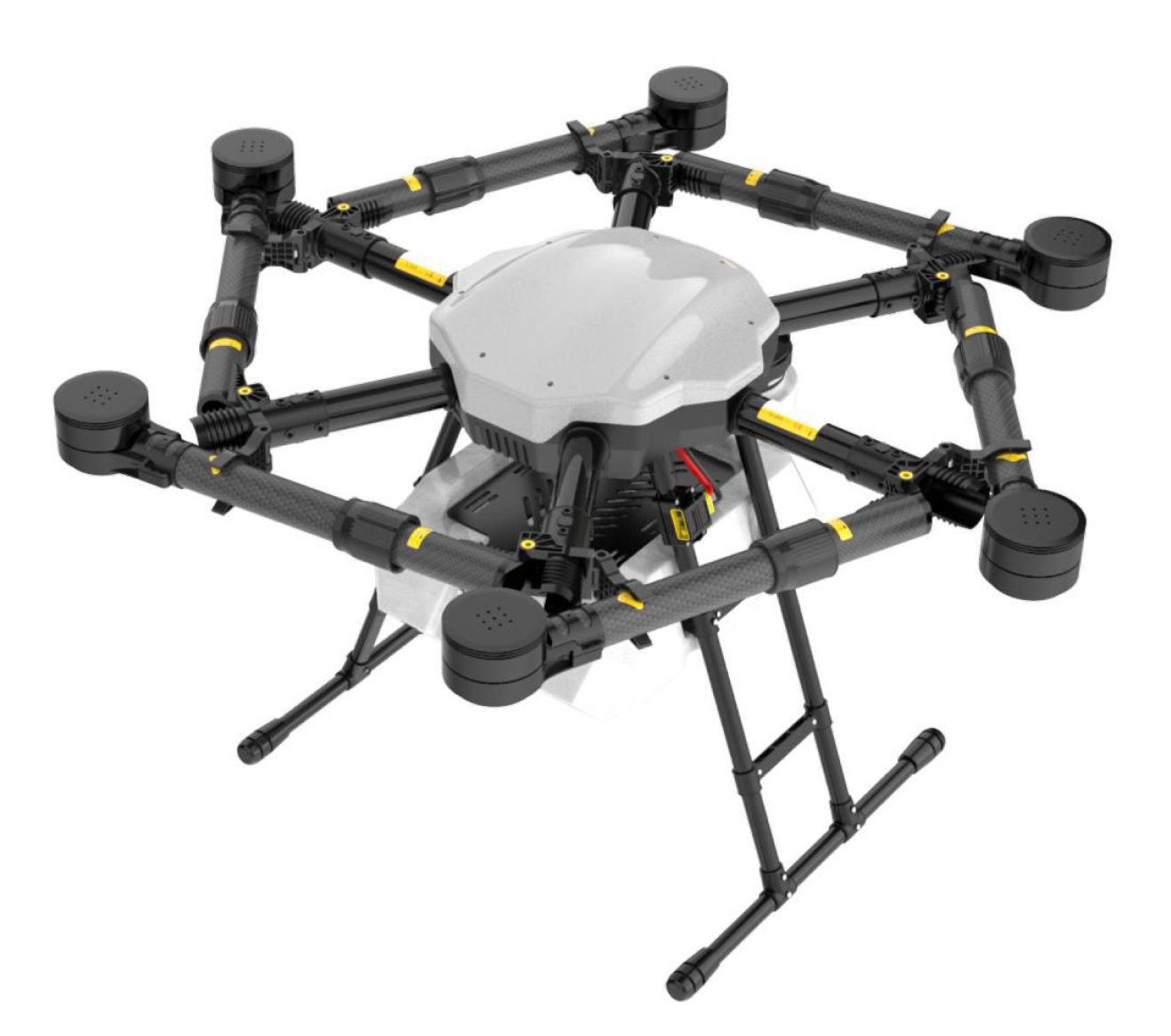

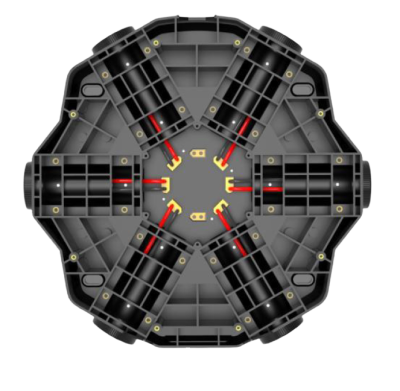

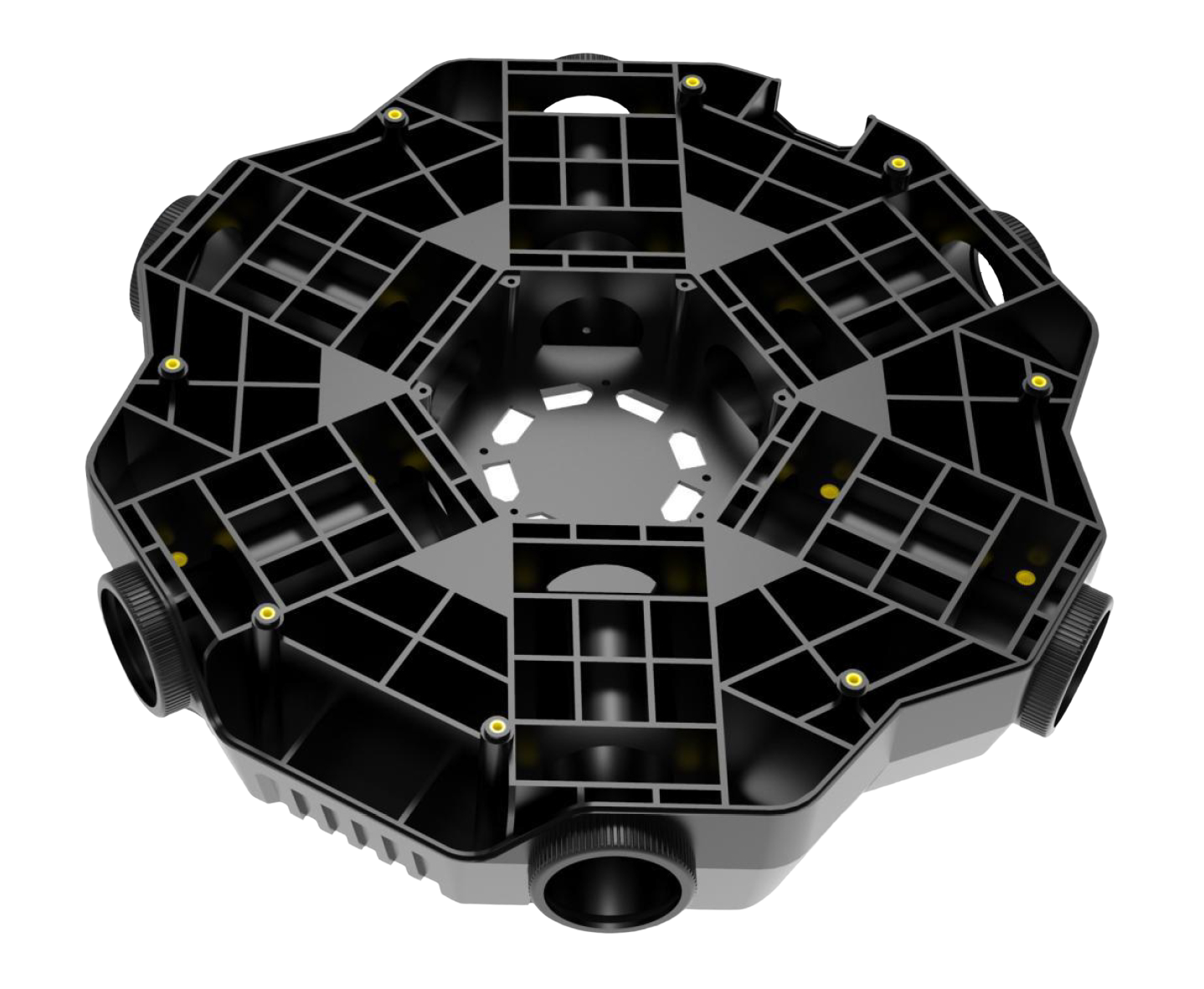

Strong structure
- integrated fiber plastic frame, internal multi link framework, strong and durable
- PCB is installed inside the frame and the installation and wiring is simple without leakage

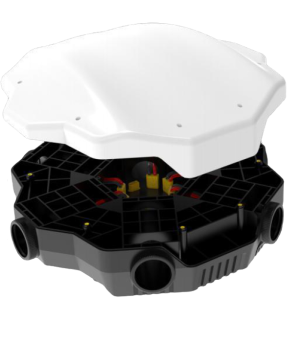

PI65

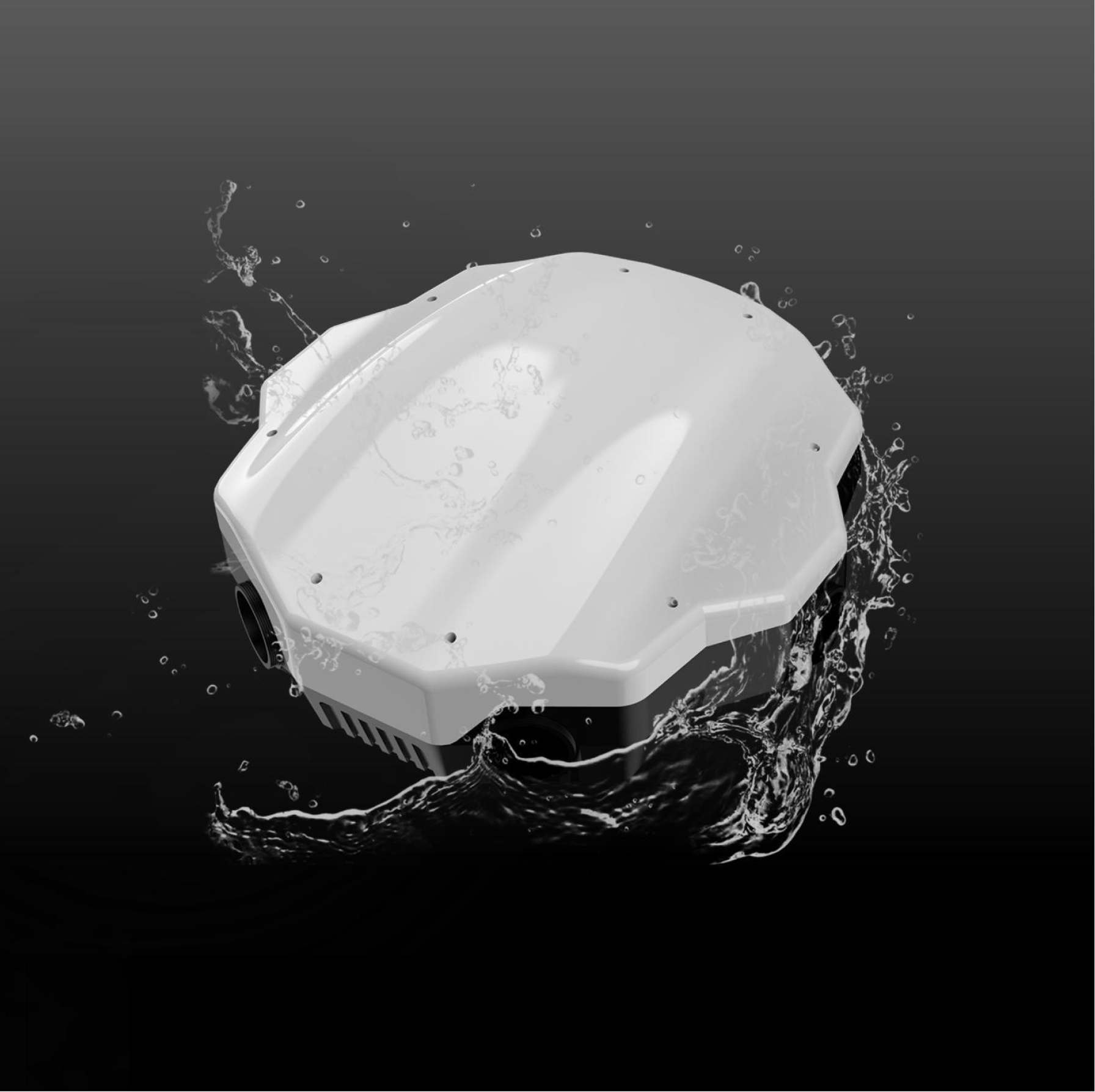

Dustproof and waterproof
- The upper and lower covers of the whole machine body are sealed to effectively take the dustproof and waterproof effet

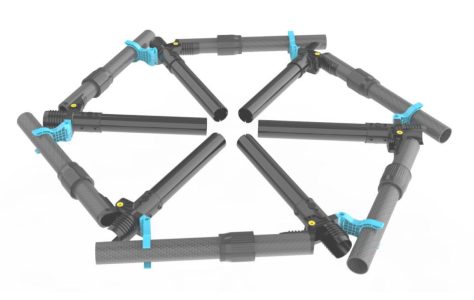

Injection folding parts
- The new folding part adopts the integrated injection molding process and the machine arm has a plastic wrapped structure, which is not easy to loosen and more stable

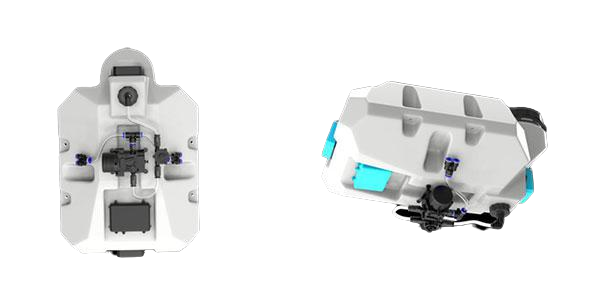

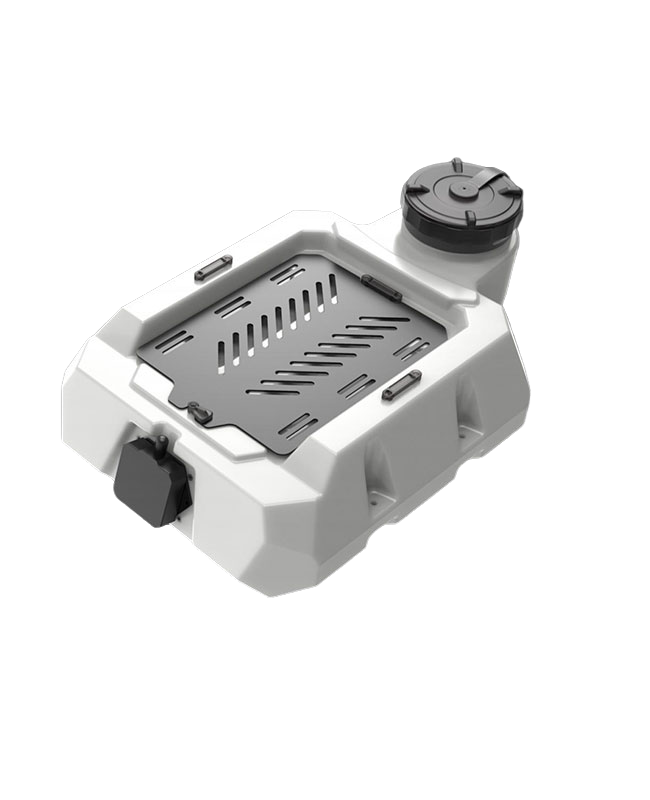

New medicine box design
- The new medicine box design is compatible with a variety of radar installations. Installation of single and double water pumps. Reasonable layout.

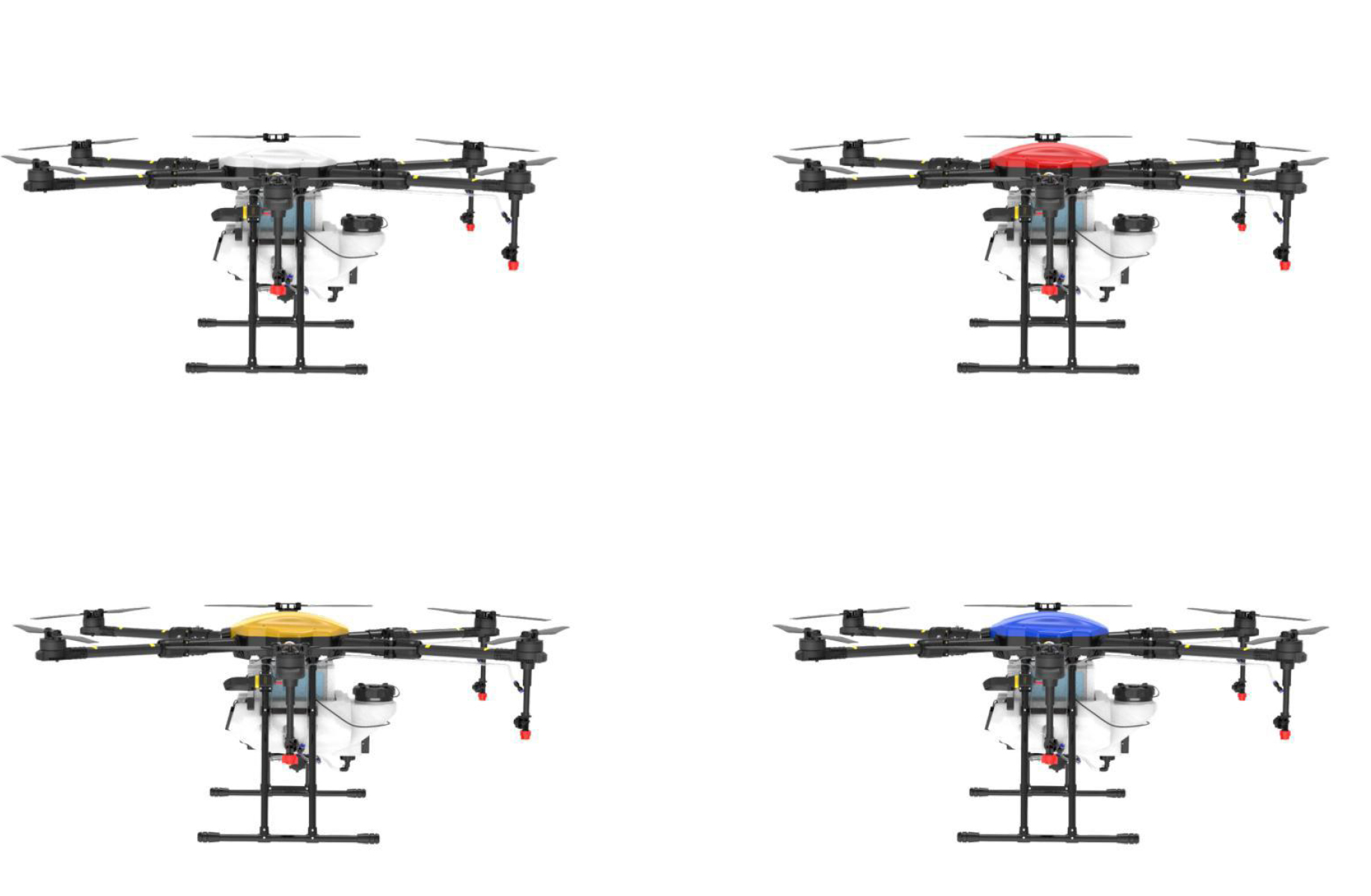

Multiple colors
- Customize a variety of mainstream colors to meet customers selection needs

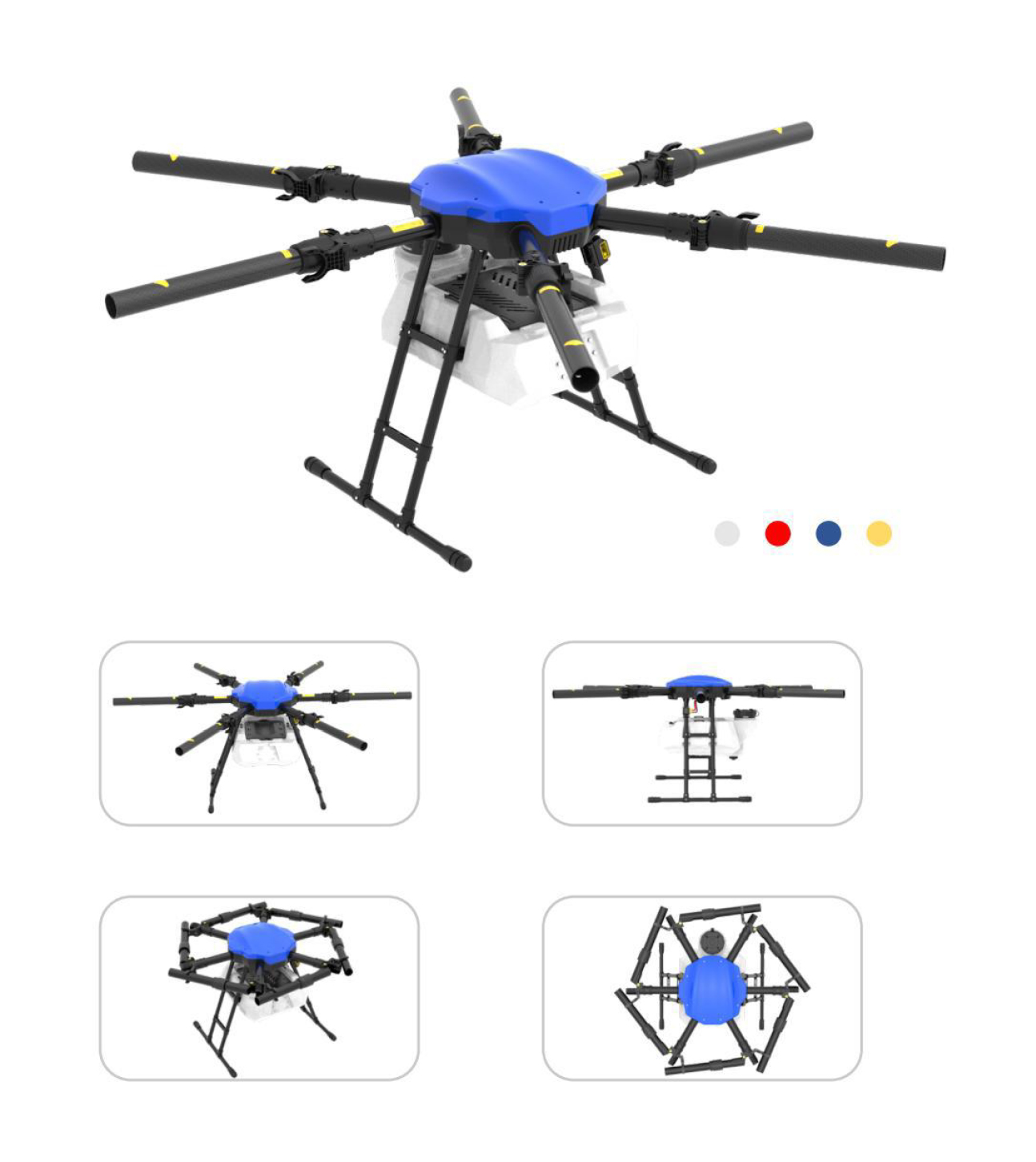

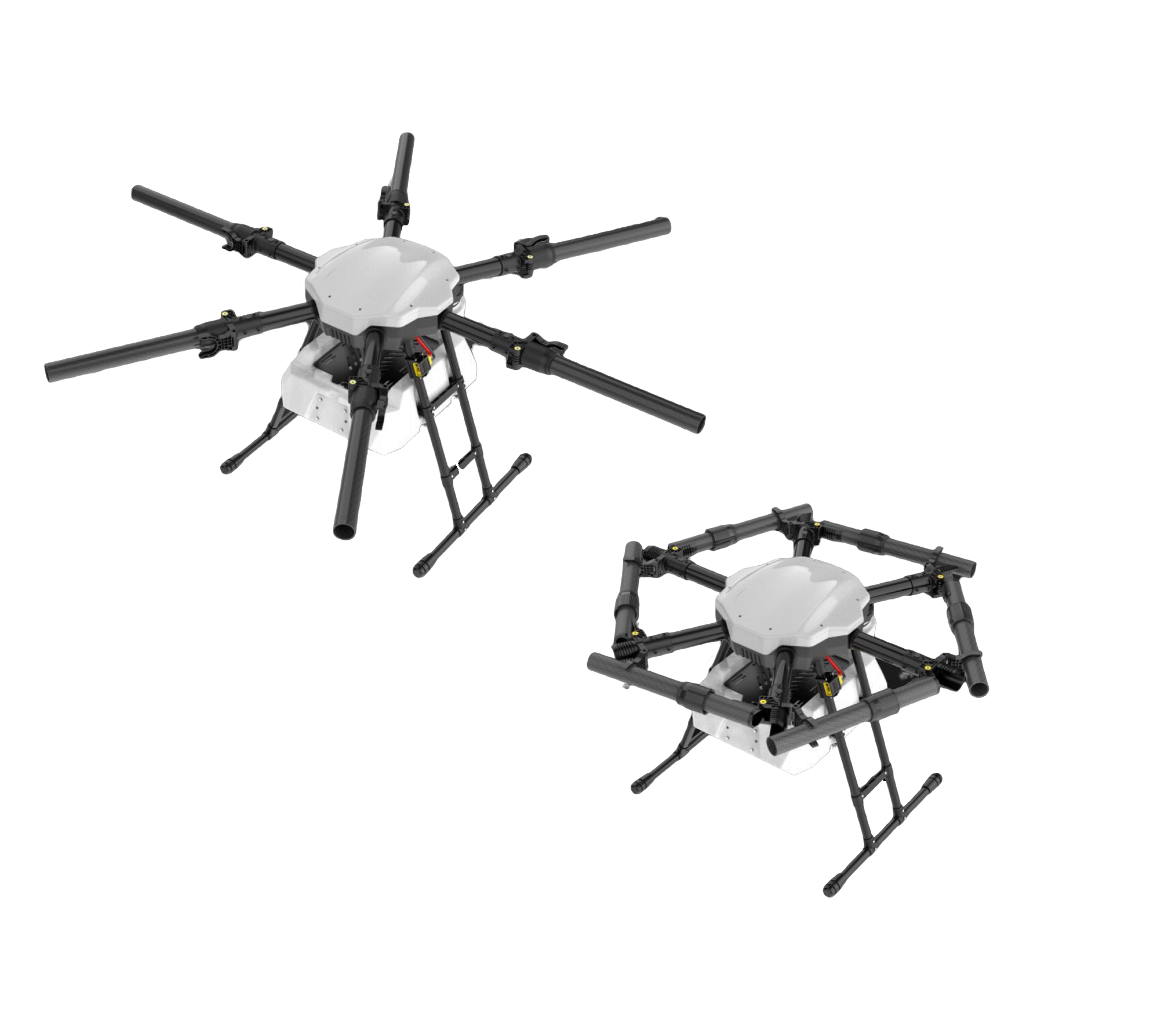

Encircling folding
- Classic surround folding design, simple and practical, reducing transportation space

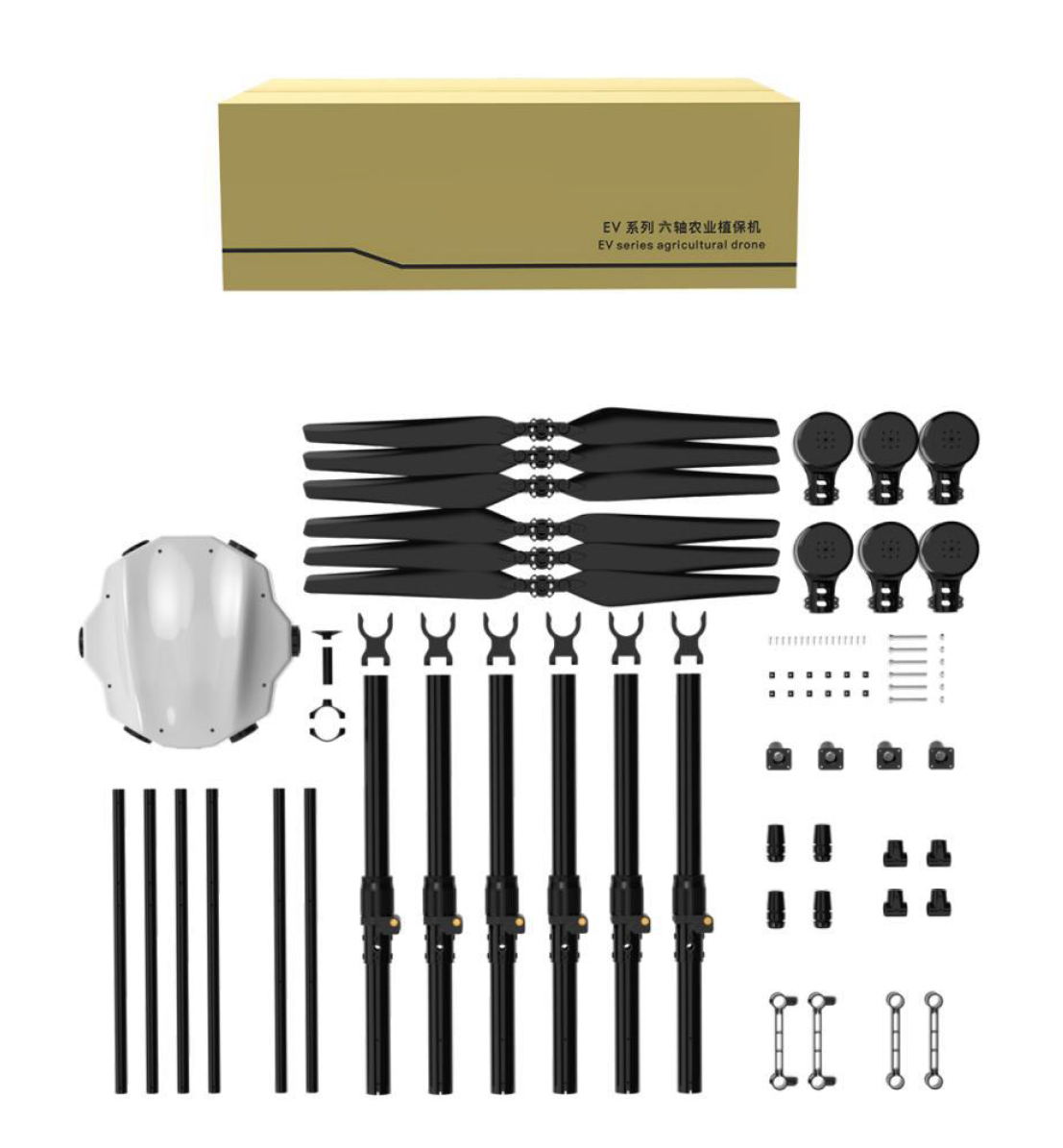

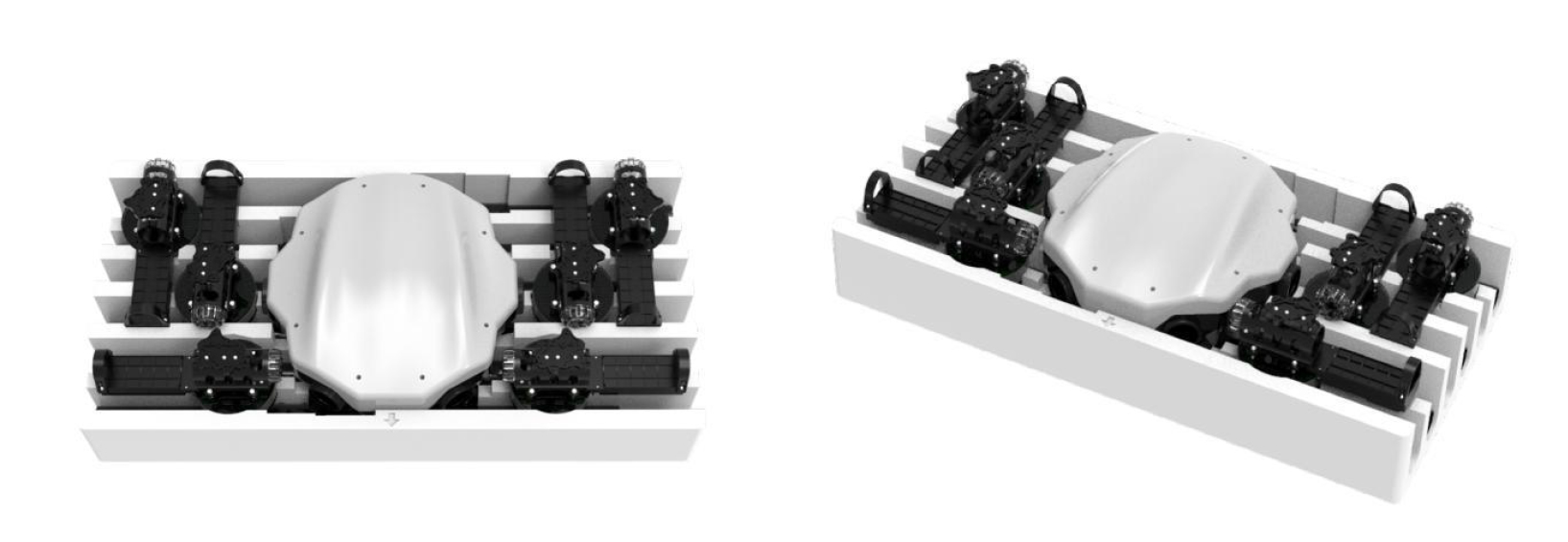

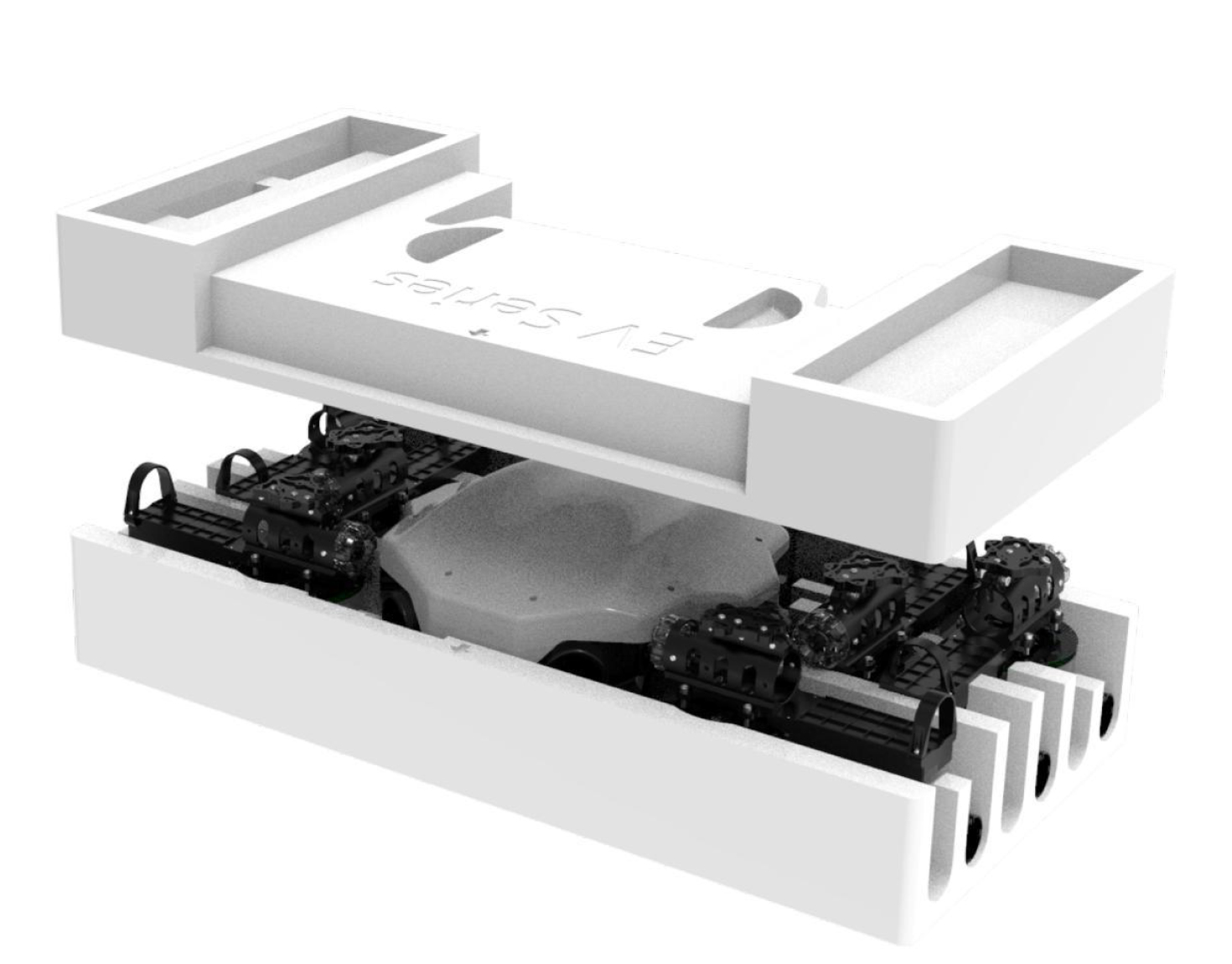

Product packaging
- Foam packing box, which can be used place the rack and propeller blades of power system
Parameter configuration table
Appearance color
- White
- Red
- Yellow
- Blue
Technical parameter
Dimensions without propeller blades
Length
1470 mm
Width
1690 mm
Height
600 mm
Wheelbase
1600 mm
Weight
15.5 kg
Pipe Diameter
37 x 40 mm
Volume
16 lt
Frame parameters
This product is available four colors

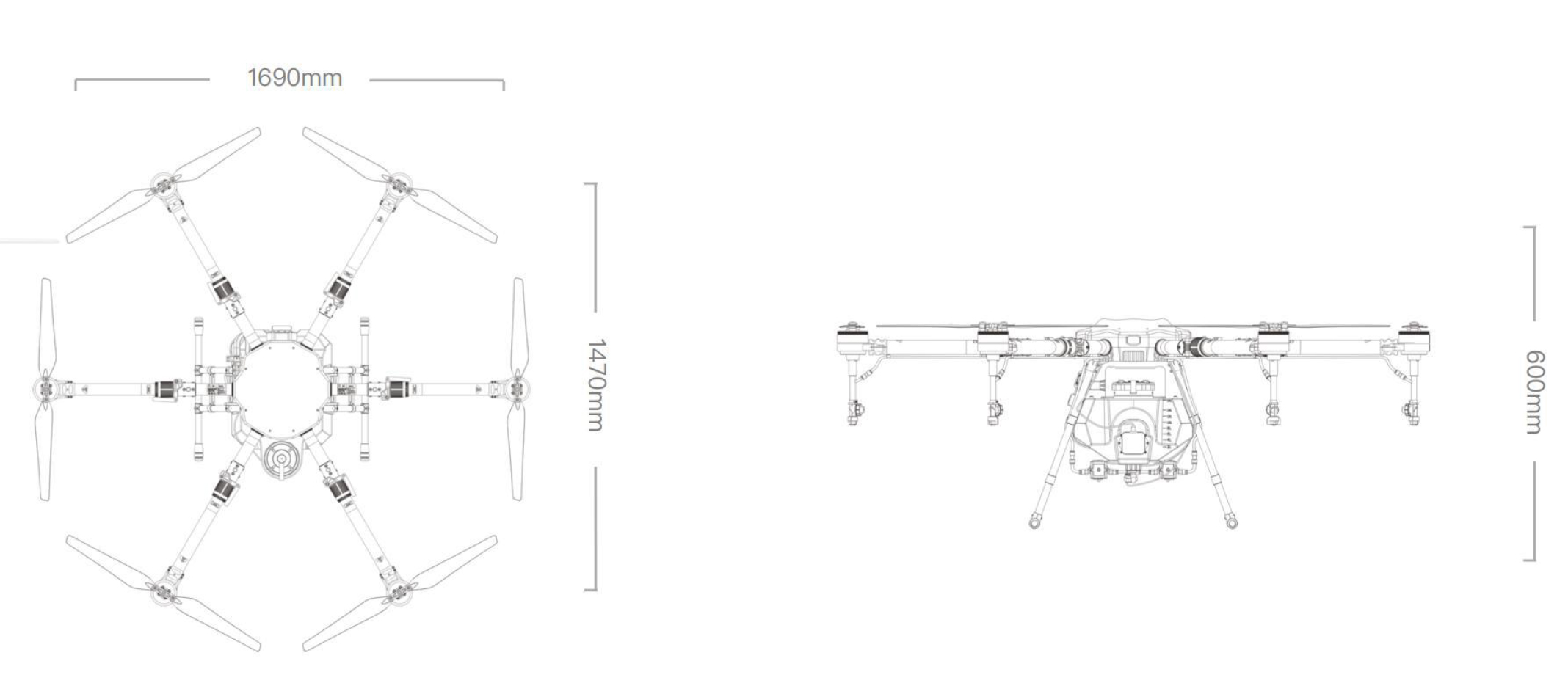

Unfold size
1690 x 1470 x 600 mm
Folding size
850 x 960 x 600 mm
Texture of material
Carbon Fiber, Nylon Fiber, Aluminum Alloy
Wheelbase
1600 mm
Pipe diameter
37 x 40 mm
Weight
7.5 kg
Volume
16 lt
FC system
K ++ / V7-AG
Dynamic system
T8 / X8
Propeller
30 inc
Spraying system
5 l Basınç Memesi
Radar installation
Front Obstacle Avoidance / Rear Obstacle Avoidance / Imitation
Lithium battery
14S / 18.000 mAh
Overall weight
38 kg

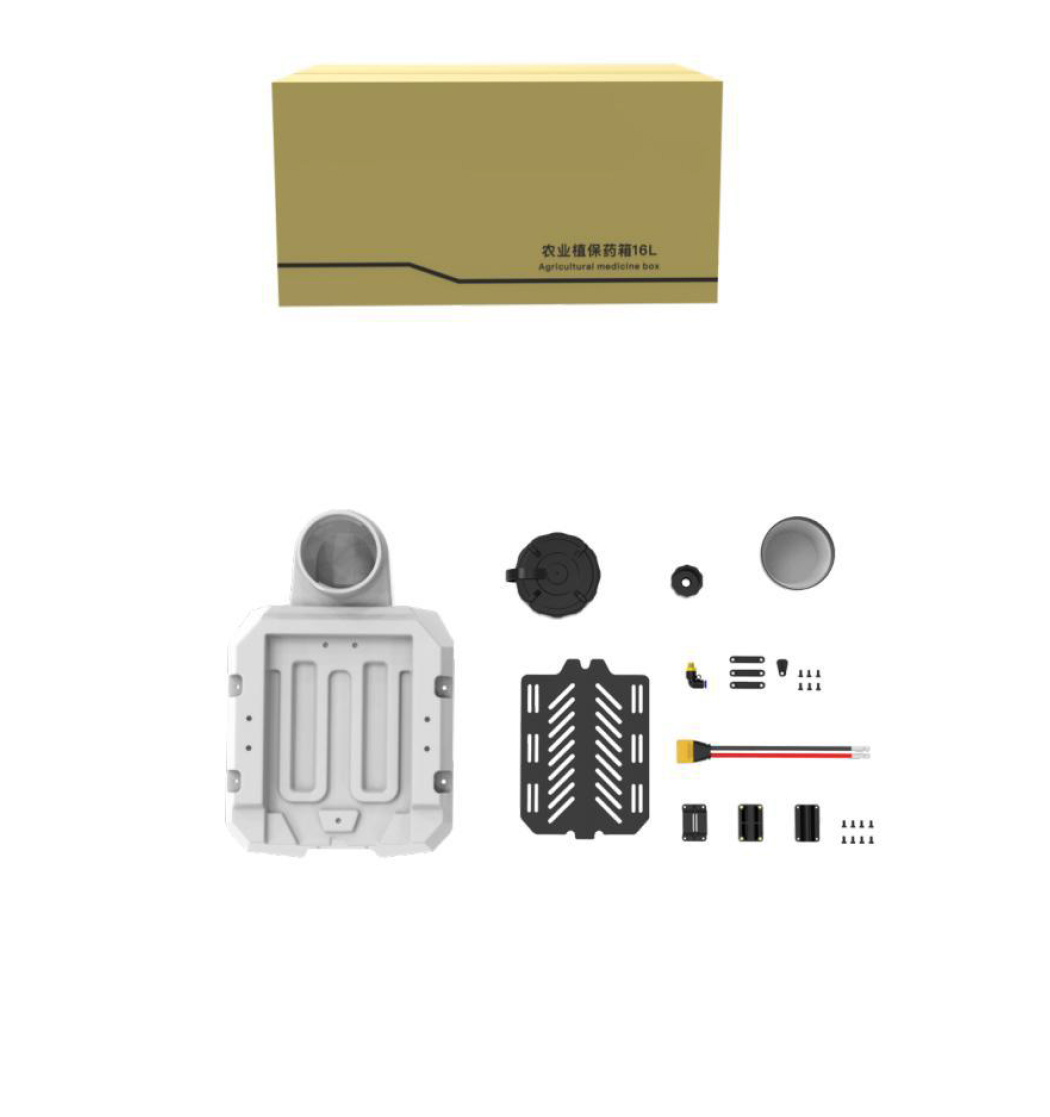

Frame packaging
-
Length
700 mm -
Width
400 mm -
Height
230 mm -
Weight
9 kg
-
Length
520 mm -
Width
350 mm -
Height
260 mm -
Weight
3 kg

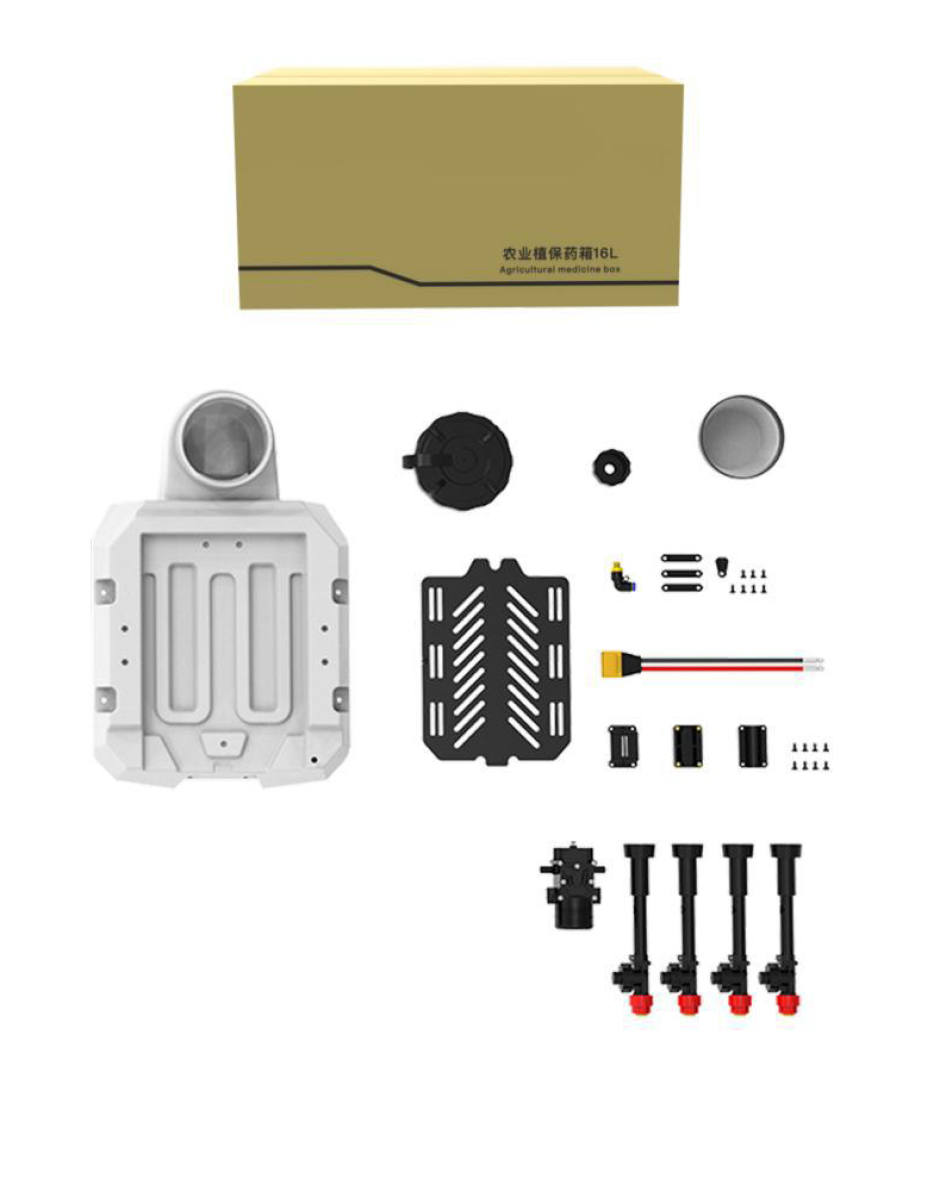

Frame motor packaging
-
Length
800 mm -
Width
400 mm -
Height
230 mm -
Weight
15.5 kg
-
Length
520 mm -
Width
350 mm -
Height
260 mm -
Weight
4 kg

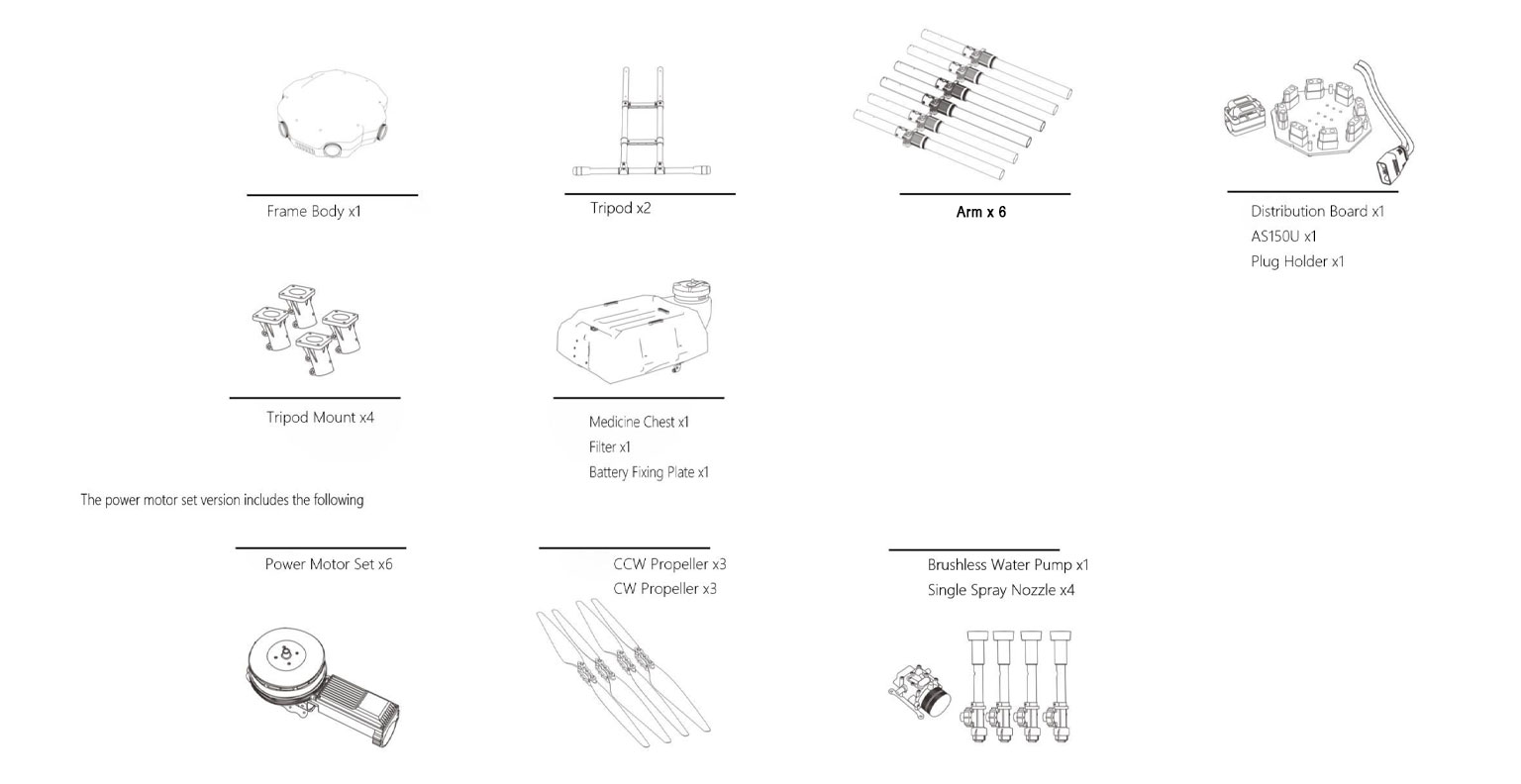

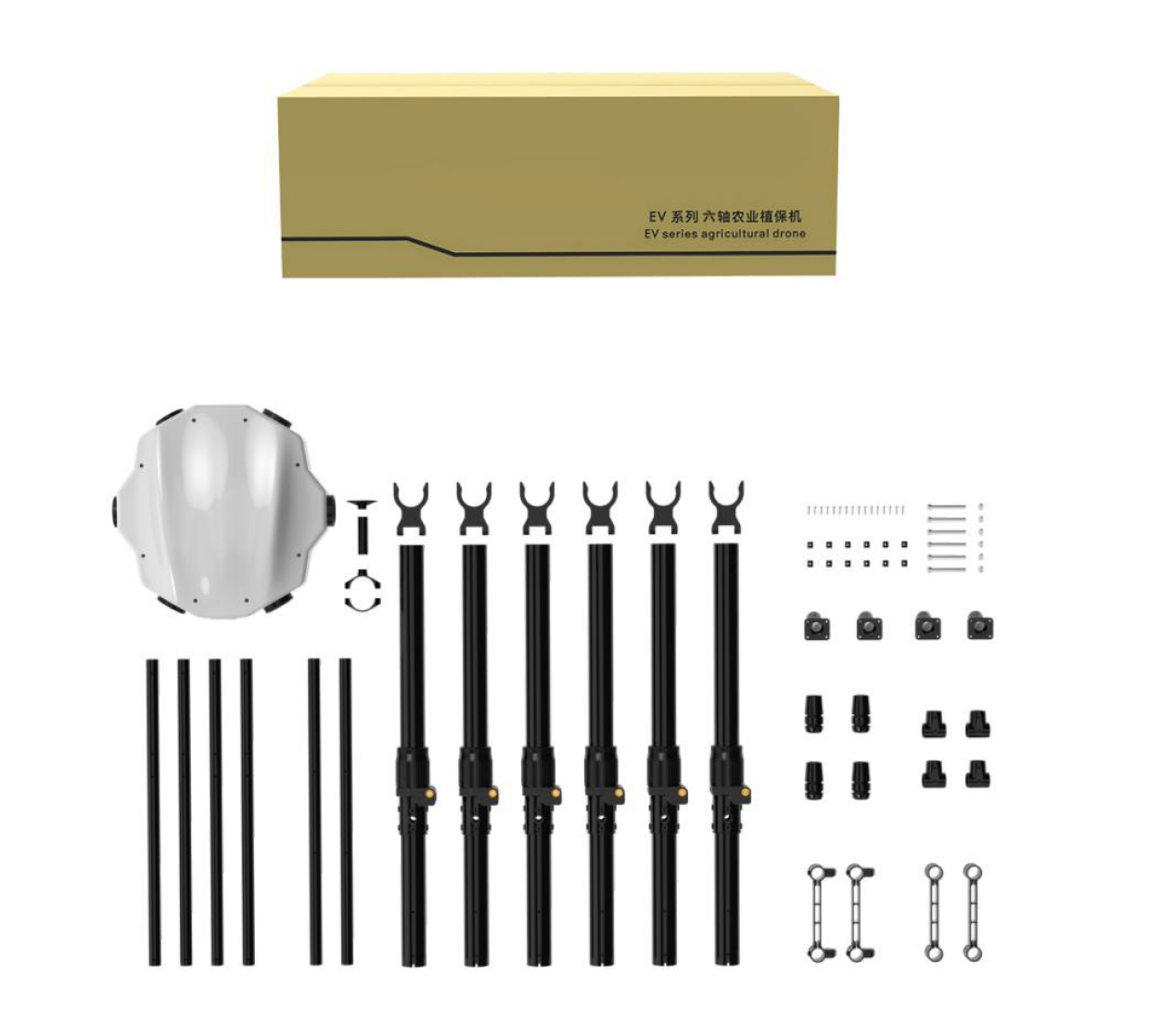

list of items
Before using this product, please check that the package contains all of the following quantities if missing, please contact us
